IntelliCheck™ Advanced Leak Rate Monitor
Potter's IntelliCheck Advanced Leak Rate Monitor is designed to monitor any dry or pre-action sprinkler system with any supervisory gas supply to ensure the system and gas supply are performing optimally. The IntelliCheck can monitor leak rate, system pressure, compressor runtime and ambient temperature. Additionally, it can perform NFPA 13 and NFPA 25 leak rate tests, fully automating the compliance testing process.
- Automated NFPA 13 and NFPA 25 leak rate testing
- IntelliView™ ready for remote cloud-monitoring and notifications
- Monitors new or existing systems
-
Monitors any individual or common supervisory gas source
- Air compressors
- Nitrogen generators
- Tank gas systems
- Assists in isolating system leaks
The IntelliCheck is part of our Auto-ITM product line, designed to automate critical inspection, testing, and maintenance procedures for fire sprinkler systems.
IntelliView™ Web Monitoring
With Potter's IntelliView Dashboard, you can connect and monitor your IntelliCheck Advanced Leak Rate Monitors from anywhere in the world. Simply connect the unit to your building's existing network and register at www.PotterIntelliView.com. Within minutes you will have access to system leak rate, pressure, compressor runtime, and much more!
Multiple buildings and IntelliView ready devices are supported allowing a property owner or building manager to monitor all of their connected systems from one location. System administrators can even register additional users to view system information.
Visit IntelliView
IntelliCheck™ Features
Quantify Leak Rates

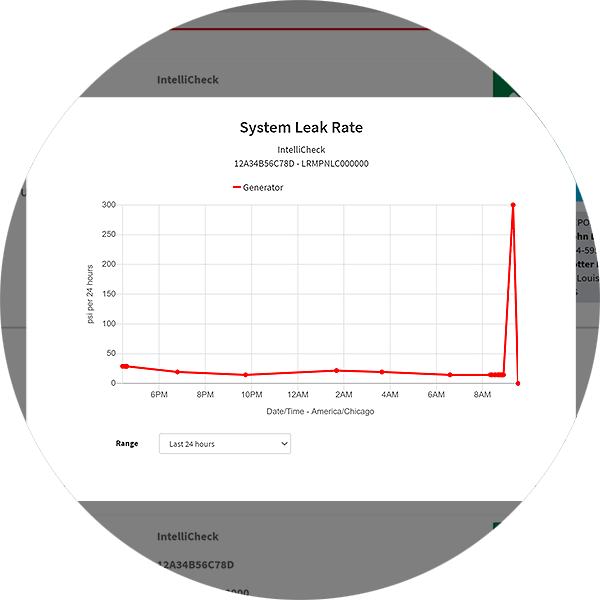

Potter's IntelliCheck quantifies leak rates and provides owners with data to make decisions about their system. Data is accessible on the IntelliCheck directly, or through rich graphs and reports via the IntelliView dashboard.
Accurate Leak Rate Monitoring
The IntelliCheck uses a pressure transducer to measure changes in air or nitrogen pressure to calculate leak rate. Along with Potter's proprietary algorithms in the embedded intelligent controller, the IntelliCheck uses these measurements to provide accurate data.
Automated NFPA 13 and NFPA 25 leak rate testing
The IntelliCheck can be configured to test for NFPA 13 or 25 leak rates and automatically conducts the test as scheduled. Results can be displayed on the unit's display or through the IntelliView web dashboard. Test frequency can be set by the user to automate compliance tests.
Monitors New & Existing Systems
Since there is no special design needed for a sprinkler system to work with the IntelliCheck, it can be installed on any new or existing system with little effort and expense.
Monitors Any Supervisory Gas Source
The IntelliCheck monitors any individual or common supervisory gas source including nitrogen generators, air compressors, and tank gas systems. It monitors leakage downstream from the system's air maintenance device. It is the perfect complement to nitrogen generators as it provides more detailed system information than most nitrogen generators.
Assists in Isolating System Leaks
Potter's IntelliCheck helps you identify and show your customers that service work is needed on a system. By utilizing precise measurements and data provided by the unit, you can be confident in the health and condition of the system.
Auto-ITM:
Saving time, enhancing safety
Potter's Auto-ITM line of products set a new benchmark in fire safety maintenance by automating inspection, testing, and maintenance processes to boost reliability and safety. This innovative approach reduces human error, cuts down labor costs, and enhances compliance, ensuring fire protection systems remain operational and up to code. For building owners, facility managers, and contractors, Auto-ITM delivers peace of mind, streamlining operations and supporting consistent system readiness. Embracing Auto-ITM means embracing a future where efficiency and safety lead the way in fire system maintenance.
